Video Intercom for Apartment Building
video
Video Intercom for Apartment Building

Video Intercom for Apartment Building

* 1080P 4 wire WiFi solution, Tuya App compatible
* 10.1" HD touch screen monitor, 1024* 600 high definition.
* 128G large capacity storage supported.
* 1CH motion detection.
* 4IN1 camera signal CVBS/AHD/TVI/CVI output

Product Introduction

Introduction



As a manufacturer of Video Intercom for Apartment Building, we are proud to introduce our product to merchants who are looking for high-quality, reliable and affordable intercom solutions for their business needs. Our video intercom system is designed to offer convenience and security to apartment residents by enabling them to see and talk to visitors before granting them access to the apartments. With years of experience in the industry, we have developed a solution that meets the needs of both residents and merchants.



Features and Benefits



Our intercom system comes with a range of features and benefits that make it stand out from the competition. Some of the key features include:



1. Video and Audio Communication - Our intercom system enables residents to communicate with visitors through both video and audio channels. This means that they can communicate effectively, even if someone is deaf or hard of hearing. The clear video and audio quality make it easy for everyone to understand and respond.



2. Multiple Apartment Access - Our intercom system allows residents in different apartments to have their own access codes. Each apartment can have up to 10 access codes, making it easy for residents to share them with trusted individuals such as family members, friends or service providers.



3. Security - Our intercom system is equipped with a camera that captures clear images of visitors. In addition, it has a motion sensor that detects any movements outside the door. All these features help to enhance security and protect residents from the risk of unauthorized access.



4. Easy to Use - Our intercom system is designed to be user-friendly, making it easy for residents to operate. The touch pad is intuitive and the system comes with clear instructions on how to use it.



5. Affordable - Our intercom system is competitively priced and provides value for money. It is an affordable solution that provides many features and benefits, making it a popular choice for merchants.



Why Choose Our Video Intercom for Apartment Building?



When choosing an intercom system for apartment buildings, it is important to select a reliable and trustworthy solution. Our video intercom for apartment building is the ideal solution for merchants as it offers many benefits. Here are some of the key reasons why you should consider our intercom system:



1. Enhanced Security - Security is essential in any apartment building. Our intercom system provides a secure way to communicate with visitors and control access to the building. It reduces the risk of unauthorized access, ensuring that residents feel safe.



2. Convenience - Our intercom system is designed to be convenient for residents. They do not need to leave their apartments to communicate with visitors, reducing the risk of exposure to the elements or security risks.



3. Cost-Effective - Our intercom system is a cost-effective solution that provides value for money. It is an affordable solution that does not compromise on quality.



4. Easy to Install - Our intercom system is easy to install and can be done by anyone with basic technical skills. We provide clear instructions on how to install the system, making it a hassle-free process.



Conclusion



In conclusion, our Video Intercom for Apartment Building is the ideal solution for merchants looking to provide residents with a secure and convenient way to communicate with visitors. With its many features and benefits, it provides value for money and is a cost-effective solution. Attracting merchants to our product is easy as we have the right solution for their needs. Contact us today to learn more about our video intercom system and how it can enhance security and convenience for your apartment building.



The Video Intercom System with WiFi is the new type 4wire system, some house install the 4wire cable already, but would like to use the WiFi function, this model can help you achieve this wish. Indoor monitor have 7Inch and 10Inch as option, outdoor unit have with RFID function and without RFID function as option.


1080P high resolution with TuyaSmart/Smart Life APP, you can remote control your door phone everywhere with 4G/WiFi by your mobile phone. Never miss an important call is a soul of a door phone.


Product Specification

Model Name

86130TM

Display screen

10.1" TFT LCD screen

Definition

10.1" (1024x600 pixels)

CCTV camera Signal

CVBS, AHD, TVI, CVI

Video Standard

PAL/NTSC

Intercom Mode

Two-way conversation

Calling time

120s

Standby current

Maximum 250mA

Working current

Maximum 600mA

Power supply

DC15V/1A

Work temperature

0~+50°C

Mounting

Surface mount

MicroSD card (max 128GB) (>Class 10)

No supplied

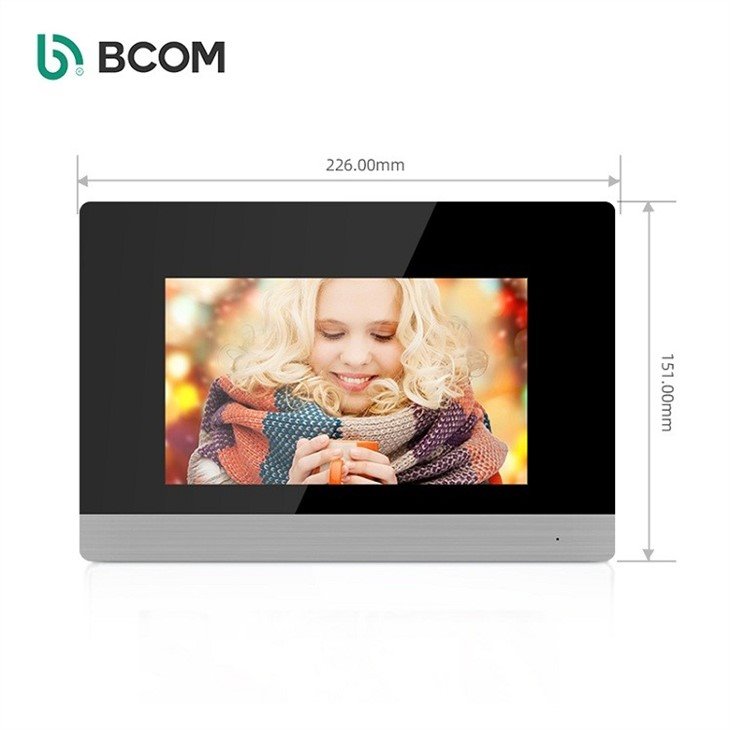

Dimension (L x W x D)

226 x 151 x 21.5mm

Digital Photo Frame

Yes (Displays photo from MicroSD Card)

Custom Ringtone

Yes (Uses ringtones)

Motion Detection

Snapshort/Record Video


Model Name

84225-EPC

Dimensions

226mm*21.5mm

Camera sensor

1/3" wide angle CMOS camera

View angle

110°

Resolution

2.0MP

LEDs for night

IR LEDs(120°)

Power consumption

150mA max.

Power source

15V 1A

Operation temp.

-40~+50ºC

Installation

Surface mount or flush mount

Lock

N/O, N/C Contact (30VDC 2A)

Ingress Protection Rating

IP65


Product Advantages:

1. 1080P 4 wire WiFi solution, Tuya App compatible

2. 10.1" HD touch screen monitor, 1024* 600 high definition.

3. 128G large capacity storage supported.

4. 1CH motion detection.

5. 4IN1 camera signal CVBS/AHD/TVI/CVI output

6. Gate unlock function

7. Dormant/At home/Not at Home 3mode


1


System Diagram:

Indoor monitor connect to router by 2.4G WiFi or CAT5/CAT6 network cable.

CCTV camera input up to 1080P with CVBS, AHD, TVI, CVI auto adaption.


2


Packing Details

* Indoor monitor: 1piece

* Outdoor unit: 1piece

* Power adaptor: 1piece for outdoor unit, 1piece door indoor monitor

* Angle bracket: 1piece

* Manual: 2piece

* Screw bag: 1piece


Remark: above accessories are standard, this part can be customized according to client request.


3


Factory Introduction

Bcom with owned PCB factory, SMT factory, assemble factory, R&D team, every steps offers and control by Bcom only.



FAQ

1. How many mobile phone can connect to this door phone?

One house can connect up to 10mobile user, it is support both mobile phone and tablet.


2. Can my house install 3 monitors?

Yes, it is ok, you need one master monitor with WiFi+ 2 piece slave monitor without WiFi. No need 3 monitor all with WiFi, this is a way to save your cost. This monitor design we have with WiFi and without WiFi 2version optional.


3. How to use this product?

Step 1: Connect the indoor monitor to outdoor station by 4 wire cable.

Step 2: Setup master monitor as 01, extension monitors as 02, 03 etc.

Step 3: Connect indoor monitor to router by WiFi or LAN cable, bind the monitor to the mobile App.

Step 4: Call from outdoor station, both monitor and mobile App will get a call.


4. Can I print my logo on door phone?

Yes, Customization order with MOQ 100 kits for logo printing;


5. Delivery time

20 days for neutral product, 35-40 days for OEM/ODM order.




Why choose us?

  • We are dedicated to offering exceptional customer service and timely delivery of our IP video intercom products.
  • Our company sticks to 'pursuit of perfection, giving back to the community' from first to last. We are looking forward to cooperating with regular and new customers.
  • Customer satisfaction is our top priority, and we strive to exceed expectations with every IP video intercom product that we sell.
  • Our excellent corporate culture is our soul and inexhaustible power to promote our development.
  • We are committed to providing our customers with superior-quality IP video intercom products at unbeatable prices.
  • Our company has established long-term and good cooperative partnership with many large enterprises at home and abroad, and indirectly or directly become the main supplier of Video Intercom for Apartment Building at home and abroad.
  • Our factory is equipped with the latest machinery and equipment to manufacture high-quality IP video intercom products.
  • Welcome to inquire, we will meet your requirements with high-quality products and competitive prices according to your requirements.
  • Our goal is to provide customers with IP video intercom products that are reliable, durable, and easy to use.
  • We look forward to continuing to establish a strong and close relationship with every customer, with a view to developing better in the future and contributing to the development of the Video Intercom for Apartment Building industry.
