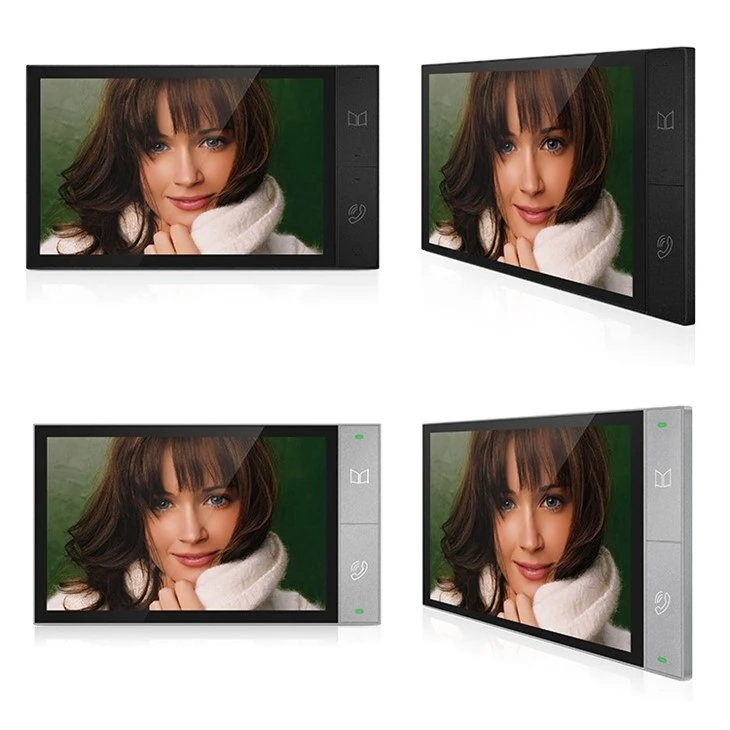

DHCP IP Video Intercom System



Technical Specification

Part Number 83723TM Display Screen 7" TFT LCD(16:9) Operation Method Portable touch screen WiFi Frequency 2.4G WIFI (IEEE802.11b/g/n) Definition 1024x 600 Intercom Mode Full-Duplex Communication Conversation Duration 120 seconds Standby Current 250mA max Working Current 600mA max Power Supply PoE switch / 15VDC 2A Operating Temperature -10º ~ +50º C Installation Type Surface Mounted Picture Format JPEG Standard format Extension Memory Micro SD Card 32GB max.(No supplied) System Capacity 10 indoor monitors + 6 outdoor stations + 6 IP cameras Alarm Inputs NO or NC contacts Motion Detection Motion picture/video recording when MicroSD card installed Dimensions 151(H) x 226 (W) x 20.5mm (D) Cabling Requirements CAT-5e 4-Pair * 0.4mm² Maximum Wiring Distance 100m between any of two devices

Part Number 83238 Operation System Embedded Linux Operation System Camera CMOS Low Illumination 2.0MP HD Colorful Camera Viewing Angle 110° Horizontal Video Compression H.264 Ethernet 10/100/1000 Mbps Self-adaptive Ethernet Audio Quality Noise Suppression and Echo Cancellation Internal Card Reader No Weatherproof IP Rating IP65 Power Supply PoE switch / 15VDC 2A Standby Current 150mA max. Working Current 300mA max. Working Humidity 10% to 90% Operating Temperature -40º ~ +50º C (-40°F to 140°F) Door Magenetic Detection Detects Door Magnetic Status Lock Output 12VDC , NO/NC Contact Installation Type Surface Mounted Dimensions 146 (H) x 70 (W) x 43mm (D)









Packing List

The Video Door Phone With WiFi kit includes one 7" sensor button indoor monitor, one outdoor station, power supply, wall bracket and accessory package.







Certification

Bcom 4 wire WiFi video intercom with CE, FCC, ROHS for European market, RED for Australia market, COC for Saudi market, EAC for Russia market.





Quality Control

From PCB designing, molding, SMT, assembly, aging, testing, Bcom offers ONE STOP SERVICE for OEM & ODM orders. All the products are with IQC, IPQC, OQC inspection before production, during production and after production. Up to 95% components soldered by SMT machine to reduce the semi-manufactured products defective rage. 24 hours aging after assembly to keep the product stability.





FAQ

1. Where could be this product installed?

It suits for residents house or office, which has already wired with 4 pin cable.



2. How to use this product?

Step 1. Install intercom.

Step 2. Download the TuyaSmart app and register an account.

Step 3. Add the intercom to app.



3. Delivery time

20 days for neutral product, 35-40 days for OEM/ODM order.



4. Payment terms

30% T/T deposit in advance, 70% T/T balance before shipment.



5. After-sale service

1% PCBA or accessories as replacement; 24 hours technical support; 18 months warranty.
