The Gate Entry Keypad Intercom is the door entry system product including video and security access main for single family homes and public premises (businesses, offices, stores, etc). It includes an outdoor station with 2.0MP camera lens and HD touch screen monitor, which can be effectively associated in your home.

Bcom Gate Entry Keypad Intercom can be integrated with CCTV and alarm systems. This adds protection for video intercom products used in residential areas or commercial premises that require higher security levels. Bcom offers a total security system arrangement through IP intercom, 4 wire intercom and 2 wire intercom.

Technical Specification

Part Number	86711TM
Display screen	7" TFT LCD screen
Definition	7" (1024x600 pixels)
CCTV camera input	CVBS, AHD, TVI, CVI
Standard	PAL/NTSC
Calling mode	Two-way conversation
Calling time	120s
Standby current	Maximum 250mA
Working current	Maximum 600mA
Power supply	External switching power supply (DC 15V)
Work temperature	0~+50°C
Mounting	Surface mount
Picture format	JPEG standard format
MicroSD card (max 128GB) (>Class 10)	No supplied
Dimension (L x W x D)	226 x 151 x 21.5mm
Digital Photo Frame	Yes (Displays photo from MicroSD Card)
Custom Ringtone	Yes (Uses ringtones)
Motion Detection	Motion picture recording when MicroSD card installed
Part Number	84225-LPC
Dimensions	226mm*21.5mm
Camera sensor	1/4 inch wide angle CMOS camera
View angle	110°
De­nition (Hor.)	1080P
LEDs for night	IR LEDs(120°)
Power consumption	150mA max.
Power source	15V 1A
Operation temp.	-40~+50ºC
Installation	Surface mount or flush mount
Lock	N/O, N/C Contact (30VDC 2A)
Ingress Protection Rating	IP65

Product Advantages:

1. 1080P 4 wire WiFi solution, Tuya App compatible

2. HD touch screen monitor, 1024*600 high definition.

3. 128G large capacity storage supported.

4. 4CH motion detection.

5. CVBS/AHD/TVI/CVI output signal compatible.

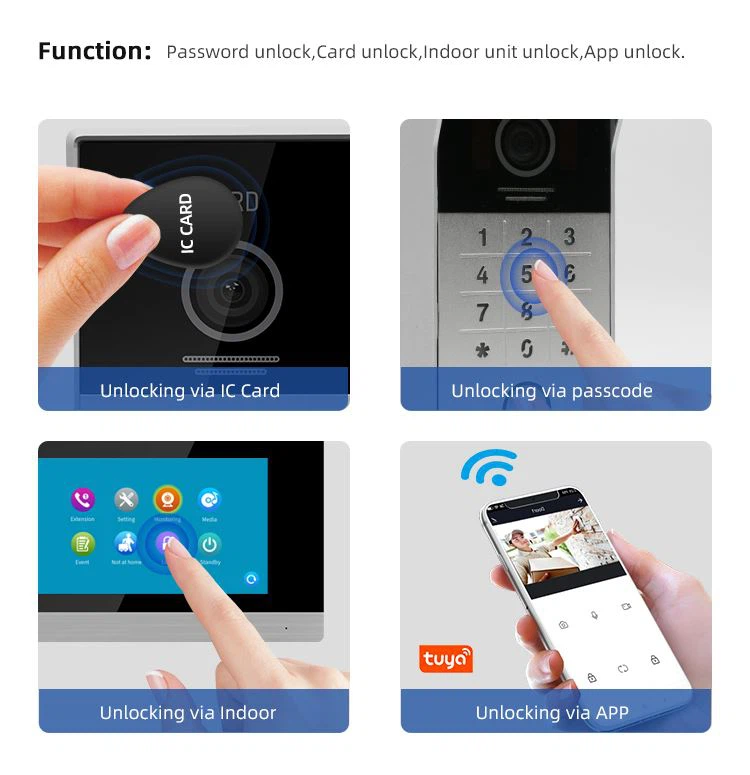

6. Multi options to unlock the door via RFID, password, monitor or Mobile App.

System Diagram:

Indoor monitor connect to router by 2.4G WiFi or CAT5/CAT6 network cable.

CCTV camera input with CVBS, AHD, TVI, CVI auto adaption.

Product Specifications

The 7" monitor is capacitive touch screen with microSD card slot.

Outdoor Station is light control touch button, surface mount or flush mount for options.

Certification

Bcom Gate Entry Keypad Intercom with CE, FCC, ROHS, REACH for European market

Quality Control

From PCB designing, molding, SMT, assembly, aging, testing, Bcom offers ONE STOP SERVICE for OEM & ODM orders. All the products are with IQC, IPQC, OQC inspection before production, during production and after production. Up to 95% components soldered by SMT machine to reduce the semi-manufactured products defective rage. 24 hours aging after assembly to keep the product stability.

FAQ

1. What is the advantages of this product?

It is a analog to digital system, 4 wire connection, 1080P high resolution solution, TuyaSmart App compatible, one of the most stable App on notification in the world.

2. How to use this product?

Step 1: Connect the indoor monitor to outdoor station by 4 wire cable.

Step 2: Setup master monitor as 01, extension monitors as 02, 03 etc.

Step 3: Connect indoor monitor to router by WiFi or LAN cable, bind the monitor to the mobile App.

Step 4: Call from outdoor station, both monitor and mobile App will get a call.

3. How to do if the monitor failed with WiFi connection?

Solution 1: Take one router work with WiFi monitor only, reset the router to clear all the data.

Solution 2: Use mobile phone 4G network to sent hot spot to test it.

Solution 3: Use wired connection to connect the monitor to router, and check if the monitor could connect to internet successfully.
